Vehicle

One long-wheelbase van. Personally managed.

A 2022 Citroën Relay L3H2 3.5T with side and rear loading access, used for suitable courier, furniture and commercial delivery work.

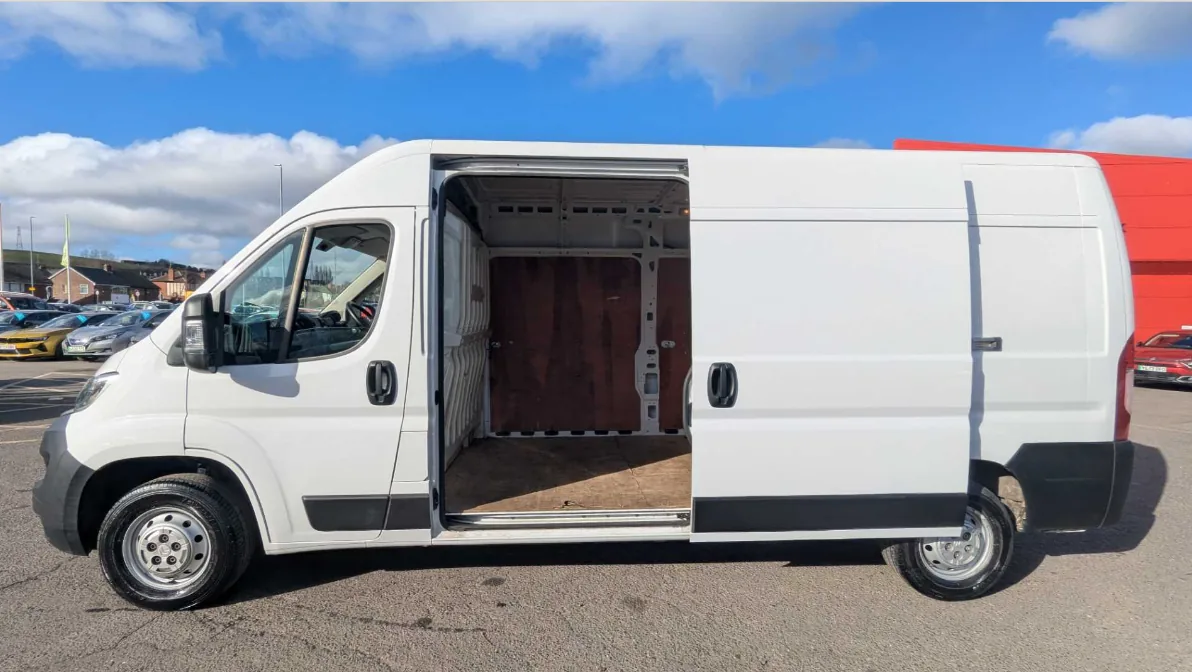

White Citroën Relay L3H2 commercial van with side loading door open

Confirmed vehicle

Practical load space, clearly specified

Vehicle: 2022 Citroën Relay L3H2 3.5T
GVW: 3,500 kg maximum permissible mass
Mass in service: 2,080 kg (V5C figure)
Weighbridge check: 2,000 kg total on 19 May 2026 (front axle 1,210 kg, rear axle 790 kg), weighed with the driver in the cab, the standard kit on board (sack truck, straps, blankets) and about three-quarters of a tank of fuel
Usable payload: About 1,500 kg as weighed (driver, kit and fuel included), subject to axle limits and how the load is distributed
Access: Side sliding and rear doors
Availability: Confirmed per enquiry

The 1,500 kg figure is the 3,500 kg maximum permissible mass minus the 2,000 kg weighbridge weight, which already includes the driver, the standard kit and about three-quarters of a tank of fuel. The vehicle must stay within its plated limits, including each axle limit, so how the load is distributed matters as well as its total weight.

Approximate dimensions · measured

Plan the load before collection

3.68 mLoad length3.52 m usable at mid height · Citroën spec 3.70 m

1.87 mLoad widthCitroën spec 1.87 m

1.40 mBetween wheel archesArch height 0.45 m · Citroën spec 1.42 m

1.90 mLoad heightCitroën spec 1.93 m

13 m³Approximate volume

1.30 × 1.73 mSide sliding doorWidth × height

1.25 × 1.78 mRear double doorsWidth × height

Dimensions are approximate internal measurements of Arrow's van, with Citroën's published figures for reference. Critical loads must be physically measured and confirmed before booking.

View the load-space drawings: plan view · cross-section

Plan view of the van's cargo area: 3.68 m long (3.52 m usable at mid height), 1.87 m wide, 1.40 m between the wheel arches, which start 2.35 m from the bulkhead and end 0.25 m from the rear, side door opening 1.30 m wide, rear double-door opening 1.25 m wide, about 13 m³.

Cross-section of the cargo area looking forward: 1.87 m wide and 1.90 m high, with wheel arches 0.45 m high.

All dimensions are approximate internal measurements. Please confirm large or awkward loads before booking.

Will it fit?

Suitability depends on more than volume

Furniture, boxed commercial goods, equipment, bulky purchases and multi-drop loads may be suitable, but every critical load needs checking.

Provide the longest, widest and tallest dimensions
Include the total weight and item count
Explain stairs, parking and doorway restrictions
Confirm loading and unloading help
Share photographs where shape or access may matter

Check a load View delivery services →

Inside the van

Loading planned around the consignment

Load organisation, protection and restraint requirements are considered for the actual goods. Every item, weight and access situation is checked before a booking is confirmed.

See selected delivery work →
